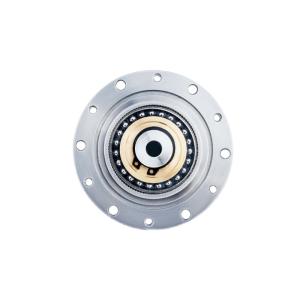

Aerospace Strain Wave Harmonic Gear Box Drive Reducer Flexspline

Product Categories

Suzhou Giant Precision Industry Co., Ltd.

Contact Now

Name: Aerospace Strain Wave Harmonic Gear Box Drive Reducer Flexspline
Brand: Giant Precision
Price: 1 USD

Brand Name : Giant Precision

Model Number : LSS-20-XX-U-II

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : To Be Negotiated

Payment Terms : T/T

Supply Ability : 20000 Sets per Month

Delivery Time : 3-4 Weeks

Packaging Details : Carton Box

Model : 20

Product : Model 20 Harmonic Reducer

Components : Wave Generator, Flexspline, Circular Spline

Reduction Ratio : 50:1, 80:1, 100:1, 120:1, 160:1

Backlash : ≤20 Arc Sec

Maximum Input Speed : 6500 r/min

Design Life : 15000 hours

Advantages : High Torque Capacity, High Precision and Low Backlash

Weight : 0.96kg

Application : Robotics, Aerospace, Medical Equipment, Industrial Machinery, Telecommunications, Renewable Energy

Warranty : 1 Year

Contact Now

Aerospace Strain Wave Harmonic Gear Box Drive Reducer Flexspline

High Precision: The design inherently reduces backlash, allowing for highly accurate motion control.
Compact Size: Provides high reduction ratios in a relatively small and lightweight package.
High Torque Capacity: Can handle significant loads due to the distribution of force across many teeth.

Model		20
Reduction ratio		50	80	100	120	160
Rated torque at 2000r/min input	Nm	25	34	40	40	40
Rated torque at 2000r/min input	kgfm	2.5	3.5	4.1	4.1	4.1
Permissible peak torque at start and stop	Nm	56	74	82	87	92
Permissible peak torque at start and stop	kgfm	5.7	7.5	8.4	8.9	9.4
Permissible maximum value for average load torque	Nm	34	47	49	49	49
Permissible maximum value for average load torque	kgfm	3.5	4.8	5	5	5
Permissible maximum momentary torque	Nm	98	127	147	147	147
Permissible maximum momentary torque	kgfm	10	13	15	15	15
Permissible maximum input rotational speed (Grease)	r/min	6500
Permissible average input rotational speed (Grease)	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	0.96
Design life	Hour	10000	15000	15000	15000	15000

Aerospace Strain Wave Harmonic Gear Box Drive Reducer Flexspline

	Key Attributes of LSS - II Model 20 Harmonic Gear Units
	Product	Model 20 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1, 160:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	6500 r/min
	Max Input Speed	3500 r/min
	Design Life	15000 hours
	Model	20
	Weight	0.96 kg
	Warranty	1 Year
