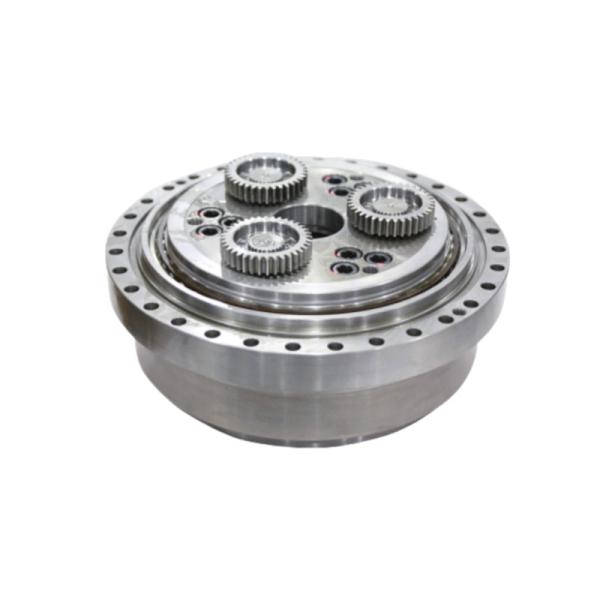

High Precision RV Small Cycloidal Gearbox Reducer Compact Design ODM

  • 1
  • 2

Brand Name : Giant Precision

Model Number : RV - F

Certification : ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : To Be Negotiated

Payment Terms : T/T

Supply Ability : 20000 Sets per Month

Delivery Time : 3-4 Weeks

Packaging Details : Carton Box

Product : F Series RV Reducer

Material : Steel, Aluminum

Output speed : 15 r/min

Output torque : 5390 to 6860 Nm

Allowable flexural torque : 10780 to 15000 Nm

Lost motion : MAX. 1 Arc.min.

Input power : 11.3 to 14.4 kW

Backlash : MAX. 1 Arc.min.

Momentary max. allowable torque : 26950 to 34300 Nm

Model : BX550F, BX700F

Color : Sliver

Warranty : 1 Year

Contact Now

High Precision High Torque F Series RV Gearboxes RV - F Reducer

RV - F series gearboxes are typically utilized in industrial applications requiring high precision, high torque, and reliability.

High precision, compact design, high torque density, low noise, high efficiency, and high reliability helps to meet the demand for precision transmission systems in industrial equipment.

Key Features

  • High precision and torque density
  • Compact design and low noise
  • High efficiency

Specifications

Parameters table of RV - F series

Output Speed(r/min) 15 Flexural rigidity (reference value) Allowable flexural torque Momentary max. allowable
flexural torque		 Allowable acceleration/
deceleration torque		 Momentary max. allowable
torque		 Angular transmission error Backlash Gear backlash Torsional rigidity(reference value) Allowable thrust load
Model Reduction ratio of a single reducer unit Output torque Input power
Nm(kgf-m) kW Nm/arc.min. (kgf-m/ arc.min.) Nm(kgf-m) Nm(kgf-m) Nm(kgf-m) Nm(kgf-m) MAX.Arc.min. MAX.Arc.min. MAX.Arc.min. Nm/arc.min. (kgf-m/Arc.min.) N(kgf)
BX550F 40 5390 11.3 9100
(928)		 10780
(1100)		 21560
(2200)		 13475
(1375)		 26950
(2750)		 1 1 1 1666
(170)		 31360
(3200)
BX700F 200.33 6860 14.4 12700
(1296)		 15000
(1530)		 30000
(3061)		 17150
(1750)		 34300
(3500)		 1 1 1 2120
(216)		 44000
(4489)
250.6

High Precision RV Small Cycloidal Gearbox Reducer Compact Design ODMHigh Precision RV Small Cycloidal Gearbox Reducer Compact Design ODM

Key Attributes of RV - F Series RV Reducer
Product High Precision RV Reducer
Material
 Steel, Aluminum
Output torque
 5390 to 6860 Nm
Output speed 15 r/min
Backlash

MAX. 1 Arc.min.
Momentary max. allowable torque
26950 to 34300 Nm
Lost motion
 MAX. 1 Arc.min.
Model

BX550F, BX700F
Color Sliver
Warranty 1 year

Application

  • Multi Tasking Machine Tool
  • CNC Machine Tool
  • Double-column Machining Centers
  • Packaging machinery

High Precision RV Small Cycloidal Gearbox Reducer Compact Design ODM
